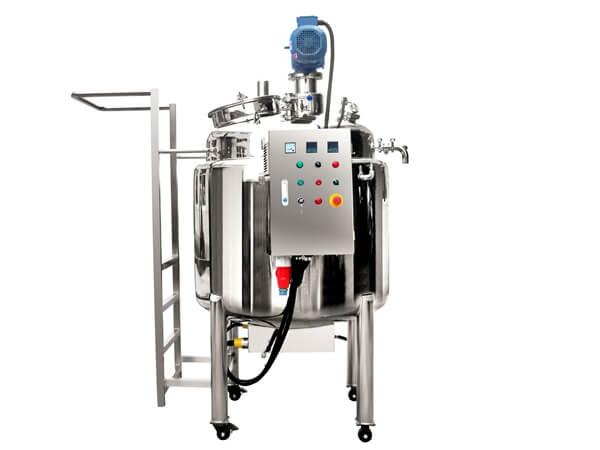

Planetary action — the impellers rotate while orbiting the vessel wall. No dead zones, no central vortex. Built for pastes, gels, adhesives and very high-viscosity blends up to 750,000+ cps.
Every machine in this family is built in our own factory, hydrostatic-tested, and video-inspected before shipment. Engineers reply to inquiries within 24 hours.
Capacity: 15L – 1500L
Production-scale planetary disperser. Impeller speed 40–95 RPM, revolution 25–35 RPM, power 1.5–55 kW.
Capacity: 5L – 10L
Benchtop planetary for R&D and small-batch trials. Impeller 160 RPM, revolution 75 RPM, power 1.5–2.2 kW.
Capacity: 50L – 1500L
Hydraulic ram discharge press for non-flowing, viscous products from planetary or multi-shaft mixers. Prevents manual scraping.
Indicative specs. Final spec sheet issued with your formal quotation.
| Capacity range | 5L – 1500L |
|---|---|
| Action | Planetary disperser |
| Impeller speed | 40 – 160 RPM (model-dependent) |
| Revolution speed | 25 – 75 RPM |
| Viscosity range | Up to 750,000+ cps |
| Vacuum option | Yes (production PX) |
| Material (contact) | SS316L |
| Discharge | Bottom valve, hydraulic ram, or manual |
300L · Disperser 11 kW homogenizer
500L · Disperser 15 kW homogenizer
1000L · Disperser 22 kW homogenizer
50L – 1500L (matches mixer) · Hydraulic ram 4 – 11 kW homogenizer
Tell us your product, batch size and capacity. We'll recommend the right model from this family and quote it.
