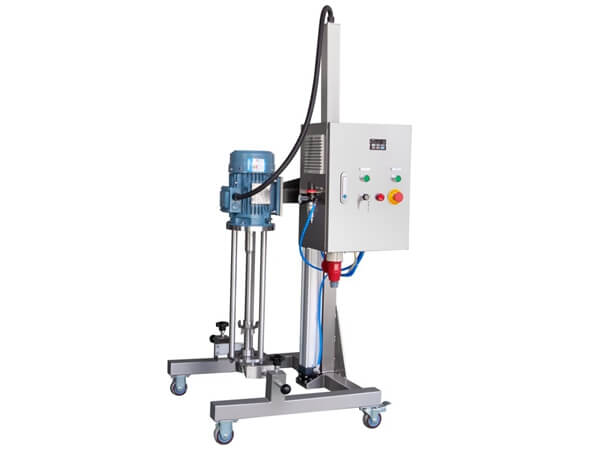

JX Top Entry Homogenizer — Batch High Shear, Working Inside the Tank

The homogenizer enters the vessel from the top and works inside the tank — the same principle as the homogenizer on our RS vacuum emulsifier. It is a batch machine: you charge the vessel, run the cycle and discharge.

Where the JX fits

Best for: Emulsifying and breaking down agglomerates inside a tank — including a tank you already own.

HOW IT IS BUILT

Where the JX Sits

SEE IT RUNNING

See a JX running

Real footage shot by our own team — no voiceover, no subtitles. Want to see a particular step, or a size closer to yours? Ask us and we will send that clip.

Watch this video on YouTube — hosted on YouTube, so it needs YouTube access. If it will not play in your country, ask us and we will send you the file directly.

HOW IT WORKS

Inside the JX

A pneumatic or hydraulic lift raises the head clear of the vessel so a portable manufacturing tank can be rolled underneath. Once the tank is held by the two brackets at the sides, the head comes down into the product.

The rotor is driven by an ABB or Siemens motor and rotates at 3000 rpm, creating strong centrifugal force. Product is drawn into the high shear zone from both the top and the bottom of the rotor.

That centrifugal force drives the product into the narrow gap between rotor and stator, where it is pressed and crushed — dispersed, homogenized and emulsified. Along the tangent the rotor reaches a linear velocity of 15–40 m/s.

Product jets out through the openings in the stator and circulates inside the tank. After several passes it is completely high sheared, dispersed, emulsified and homogenized.

On the three smallest heads — 0.37, 0.75 and 1 kW — the motor runs on a variable-frequency drive, from 0 up to 6000 rpm.

KEY FEATURES

What You Get

Complete process of dispersing, high shearing, emulsifying and homogenizing
Motor power from 0.37 kW to 75 kW
Suitable for cream and emulsions of 20,000–80,000 cps viscosity
Suitable for batch processing with high efficiency
Pneumatic or hydraulic lifting system for easy cleaning and maintenance
Works with different mixing tanks — including a tank you already own
Also used as the homogenizer on a multi-shaft mixer
All contact parts in SS304 / SS316L, mirror polished
Standard build 380V / 50Hz / 3-phase

SPECIFICATIONS

JX Standard Sizes

A batch (in-tank) machine. Every size below is a standard build — tell us your batch size or flow rate and we will quote the matching machine. Lab and production sizes are listed separately.

Lab scale

Model	Motor power (kW)	Speed (rpm)	Handling capacity (L)
JX-0.37	0.37	0~6000	0.5~5
JX-0.75	0.75	0~6000	5~15
JX-1	1	0~6000	10~25

Production

Model	Motor power (kW)	Speed (rpm)	Handling capacity (L)
JX-2.2	2.2	3000	50~100
JX-4	4	3000	100~200
JX-7.5	7.5	3000	200~400
JX-11	11	3000	300~500
JX-15	15	3000	500~1000
JX-22	22	3000	1000~2000
JX-30	30	3000	1000~2000
JX-37	37	3000	2000~2300
JX-45	45	3000	2000~3000
JX-55	55	3000	3000~4000
JX-75	75	1500	3000~5000

The 0.37 / 0.75 / 1 kW sizes are the same machines we list as lab mixers — useful for trialling a formulation before you commit to a production size. The lab heads run on 220V / 50Hz single phase.

See lab mixers

WHAT YOU CAN MAKE

Products Made on the JX

Cosmetics & toiletries

cream, lotion, wax, mascara, gel

Pharmaceuticals

ointment, dental composite, syrup, injection

Food

mayonnaise, dressing, jam, butter, margarine, wasabi

Chemicals

polyester, synthetic fibre, shoe cream

OPTIONS

Build It Your Way

Standard build is 380V / 50Hz / 3-phase with push-button control. Everything below is available on request.

Atmospheric or vacuum design, depending on the application
Interchangeable work heads and screens, in slotted and holed designs
Circular and rectangular flange designs for mounting to your vessel
Pneumatic, hydraulic or electrical lifting devices
Adjustable brackets to hold the manufacturing tank tight
Control panel with variable speed drive
Explosion-proof motors and electrics
Power supply other than 380V / 50Hz / 3-phase

COMPLIANCE

Certification & Documentation

CE / ECM

CE marked. Our range is certified by Ente Certificazione Macchine (ECM), Italy, to the Machinery Directive 2006/42/EC and the Low Voltage Directive 2014/35/EU, against EN ISO 12100:2010 and EN 60204-1:2018 — certificate No. 3J260508.JGMDT35, valid to 07 May 2031.

cGMP

The machine specification complies with cGMP requirements: product contact parts in SS316L, mirror polished so the machine cleans down between batches, with sanitary clamp connections on the pipework.
