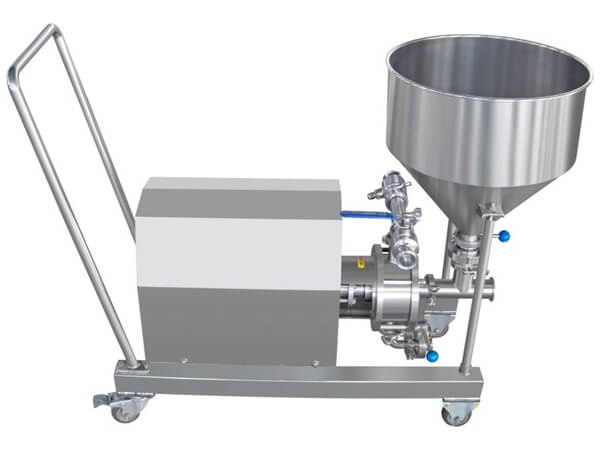

SF Powder Liquid Mixer — Inline Powder Wet-Out, Developed from the ZX

Where the SF fits

An inline powder-liquid mixer developed from the ZX. It keeps the pipeline layout but uses fewer rotor-stator stages, a larger pumping capacity, and a guide auger ahead of the rotor to increase thrust — so it draws powder into the liquid stream far more aggressively.

Best for: Wetting powders into a liquid stream continuously — no lumps, and no dust around the operator.

HOW IT IS BUILT

Where the SF Sits

SEE IT RUNNING

See a SF running

Real footage shot by our own team — no voiceover, no subtitles. Want to see a particular step, or a size closer to yours? Ask us and we will send that clip.

Watch this video on YouTube — hosted on YouTube, so it needs YouTube access. If it will not play in your country, ask us and we will send you the file directly.

HOW IT WORKS

Inside the SF

One set of rotor and stator — which also generates the vacuum that pulls powder in — a stainless steel hopper for feeding solids, a transmission and a motor. Pipes connect the mixer to your vessel and auxiliary equipment.

The rotor is driven by an ABB or Siemens motor and rotates at 3000 rpm. Liquid is drawn in through the stator inlet into the high shear housing.

Open the valve between the hopper and the mixer and pour the powder into the hopper. The vacuum created by the rotating rotor pulls the powder straight into the mixing zone — the operator is not standing in a cloud of dust.

Centrifugal force drives both solids and liquid into the narrow gap between rotor and stator, where they are pressed and crushed — dispersed, homogenized and emulsified. Product then jets out through the outlet of the housing.

Product returns to the vessel through the circulation pipe. After several passes the powder is completely dispersed and homogenized into the liquid. The SF also works as a transfer pump for discharging finished product.

KEY FEATURES

What You Get

Complete powder induction system — dispersing, high shearing, emulsifying and homogenizing powders into liquid
Water flow rate from 20 to 50 m³/h
Suitable for solid-liquid dispersion of 30,000–100,000 cps viscosity
Suitable for continuous high-volume processing with high efficiency
The rotor-stator creates the vacuum that draws powder in — no dust around the operator
Stainless steel hopper for feeding fine powders and solids
Also works as a transfer pump for discharging finished product
Cooling system for the mechanical seal, allowing longer powder induction time
Portable design with castor wheels
Works with different mixing tanks
All contact parts in SS304 / SS316L
Standard build 380V / 50Hz / 3-phase

SPECIFICATIONS

SF Standard Sizes

A inline (continuous) machine. Every size below is a standard build — tell us your batch size or flow rate and we will quote the matching machine.

Production

Model	Motor power (kW)	Speed (rpm)	Flow rate by water (T/h)	Inlet/Outlet (DN)
SF-7.5	7.5	3000	20	65/65
SF-11	11	3000	30	65/65
SF-15	15	3000	40	80/80
SF-22	22	3000	50	80/80

WHAT YOU CAN MAKE

Products Made on the SF

Cosmetics & toiletries

cream, lotion, wax, mascara, gel, toothpaste

Pharmaceuticals

ointment, dental composite, syrup, injection

Food

mayonnaise, dressing, jam, butter, margarine, wasabi

Chemicals

polyester, synthetic fibre, shoe cream

OPTIONS

Build It Your Way

Standard build is 380V / 50Hz / 3-phase with push-button control. Everything below is available on request.

Interchangeable work heads and screens, in slotted and holed designs
Portable base with castor wheels and handrail
Control panel with frequency inverter for adjusting mixing speed
Explosion-proof motors and electrics
Power supply other than 380V / 50Hz / 3-phase

COMPLIANCE

Certification & Documentation

CE / ECM

CE marked. Our range is certified by Ente Certificazione Macchine (ECM), Italy, to the Machinery Directive 2006/42/EC and the Low Voltage Directive 2014/35/EU, against EN ISO 12100:2010 and EN 60204-1:2018 — certificate No. 3J260508.JGMDT35, valid to 07 May 2031.

cGMP

The machine specification complies with cGMP requirements: product contact parts in SS316L, mirror polished so the machine cleans down between batches, with sanitary clamp connections on the pipework.

Other Series

JX · DX · ZX · FS · All high shear mixers
