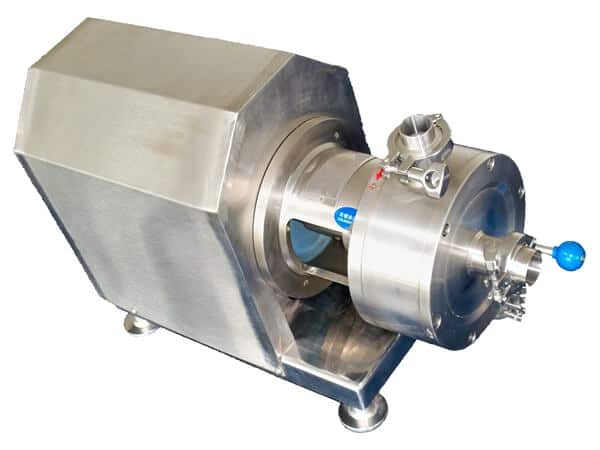

ZX Inline Homogenizer — Continuous High Shear, Fitted in the Pipeline

A pipeline machine: the ZX is installed in the pipework and product passes through it continuously. It is the same machine that sits at the heart of our RB vacuum emulsifier mixer, and it also works as the transfer pump.

Where the ZX fits

Best for: Continuous production, or adding high shear to an existing line without changing the vessel.

HOW IT IS BUILT

Where the ZX Sits

SEE IT RUNNING

See a ZX running

Real footage shot by our own team — no voiceover, no subtitles. Want to see a particular step, or a size closer to yours? Ask us and we will send that clip.

Watch this video on YouTube — hosted on YouTube, so it needs YouTube access. If it will not play in your country, ask us and we will send you the file directly.

HOW IT WORKS

Inside the ZX

One set of rotor and stator, a mechanical seal, a transmission and a motor, mounted on a stainless steel base. Inlet and outlet ports connect the machine to your vessel; a drain port at the bottom of the chamber is there for cleaning.

The rotor is driven by an ABB or Siemens motor and rotates at 3000 rpm. Raw materials are drawn in through the stator inlet into the high shear chamber.

Centrifugal force drives the product into the narrow gap between rotor and stator, where it is pressed and crushed — dispersed, homogenized and emulsified. Along the tangent the rotor reaches a linear velocity of 15–40 m/s. Product then jets out through the outlet of the chamber.

Because the ZX is self-pumping it also works as the transfer pump for discharging finished product. Product cannot bypass the precision rotor-stator workhead.

This is the same machine that sits at the heart of our RB vacuum emulsifier mixer.

KEY FEATURES

What You Get

Complete process of dispersing, high shearing, emulsifying and homogenizing
Water flow rate from 3 to 65 m³/h
Suitable for cream, lotion, ointment and other emulsions of 5,000–100,000 cps viscosity
Suitable for continuous processing of large quantities, with high efficiency
Product cannot bypass the precision rotor-stator workhead
Self-pumping — also works as the transfer pump for discharging finished product
Cooling system for the mechanical seal, allowing longer running time
Sanitary clamp connections on the inlet and outlet ports
Designed for CIP and SIP
Works with different manufacturing vessels
All contact parts in SS304 / SS316L
Standard build 380V / 50Hz / 3-phase

SPECIFICATIONS

ZX Standard Sizes

A inline (continuous) machine. Every size below is a standard build — tell us your batch size or flow rate and we will quote the matching machine.

Production

Model	Motor power (kW)	Speed (rpm)	Flow rate by water (T/h)	Inlet/Outlet (DN)
ZX-2.2	2.2	3000	3	40/40
ZX-4	4	3000	5	50/40
ZX-7.5	7.5	3000	8	50/50
ZX-11	11	3000	12	65/50
ZX-15	15	3000	18	65/50
ZX-22	22	3000	25	65/65
ZX-30	30	3000	35	80/65
ZX-37	37	3000	40	80/65
ZX-45	45	3000	50	80/80
ZX-55	55	3000	60	100/80
ZX-75	75	1500	65	100/80

WHAT YOU CAN MAKE

Products Made on the ZX

Cosmetics & toiletries

cream, lotion, wax, mascara, gel, toothpaste

Pharmaceuticals

ointment, dental composite, syrup, injection

Food

mayonnaise, dressing, jam, butter, margarine, wasabi

Chemicals

polyester, synthetic fibre, shoe cream

OPTIONS

Build It Your Way

Standard build is 380V / 50Hz / 3-phase with push-button control. Everything below is available on request.

Interchangeable work heads and screens, in slotted and holed designs
Portable base with castor wheels and handrail
Feeding hopper for adding powders and liquids
Control panel with frequency inverter for adjusting mixing speed
Explosion-proof motors and electrics
Power supply other than 380V / 50Hz / 3-phase

COMPLIANCE

Certification & Documentation

CE / ECM

CE marked. Our range is certified by Ente Certificazione Macchine (ECM), Italy, to the Machinery Directive 2006/42/EC and the Low Voltage Directive 2014/35/EU, against EN ISO 12100:2010 and EN 60204-1:2018 — certificate No. 3J260508.JGMDT35, valid to 07 May 2031.

cGMP

The machine specification complies with cGMP requirements: product contact parts in SS316L, mirror polished so the machine cleans down between batches, with sanitary clamp connections on the pipework.
